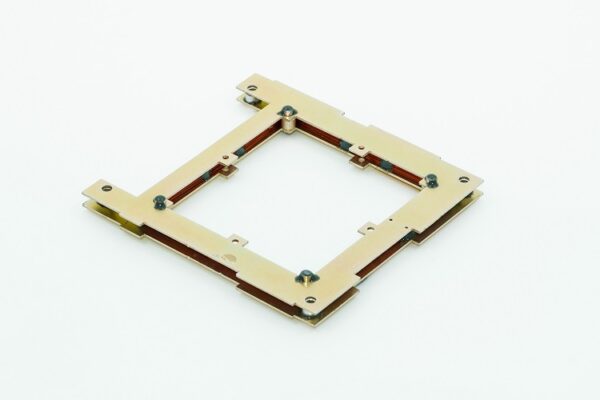

Gen 1: CubeCoil
$870 - €1070
The simplest method of changing the attitude of nanosatellites in LEO is by creating an external magnetic torque on the satellite. CubeCoil can be used for detumbling, coarse attitude changes, and desaturation of reaction wheels. CubeCoil is a low-profile, flat-air coil and is intended to fit within a PC104 stack between PCBs. It is available in ‘n single or double-wound versions that are suitable for 3U and 6U CubeSats respectively.
Download our brochure here for more detailed specifications.
Lead time: 8 weeks
Description
The compact feature of CubeCoil blends with the way the standard CubeSat boards are stacked which often becomes difficult to have three rods form a 3-Axis system. Hence, we offer a low-profile air-core coil that slots into the stack between the CubeSat PCBs creating a very compact 3-Axis magnetic control system with the integration of CubeTorquers.
Technical Specifications
| Performance | |
| Magnetic Moment [Am²] | ±0.13 |
| Magnetic Gain [Am² /A] | 2.1 |
| Linearity (0-5V) | N/A |
| Physical | |
| Mass [g] | 46 |
| Dimensions [mm] | 90x96x8 |
| Power & Data | |
| Resistance [Ω] | 79-81 |
| Max Current | 150mA |
| Qualification | |
| Vibrations | 14g RMS |
| Radiation | 24kRad |
