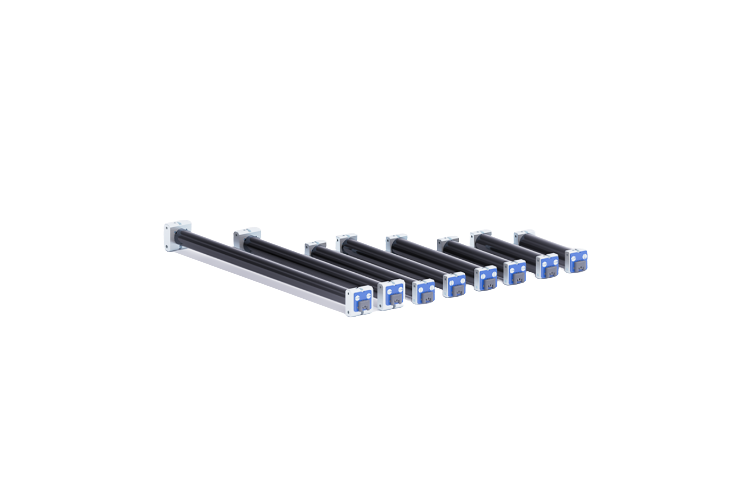

Magnetorquer Rods (CR0002-CR0020)
Price on request
At CubeSpace (CS) our extensive range of space-proven magnetic torquers are built using automated machinery and go through rigorous testing, ensuring absolute repeatability, and enabling high volumes at low cost. With their compact design, low-profile connectors, and robust mounting options, they are perfectly suited for satellites where space and mass are of high priority. Furthermore, given the modularity and maturity of this product range, CS also offer customers customized options for larger satellites.
Contact us for the latest Option Sheet and ICD for our magnetorquer rods.
Lead Time: 8 weeks
Description
Features:
- Extended Range for increased product offering to suit multiple performance needs
- Heat treated core
- High magnetic gain
- Standardized connector – Molex Micro-lock across Gen2 product range
- Robust mounting
Magnetic Moment:
-
- CR0002: 0.2Am²
- CR0003: 0.3Am²
- CR0004: 0.4Am²
- CR0006: 0.6Am²
- CR0008: 0.8Am²
- CR0010: 1Am²
- CR0012: 1.2Am²
- CR0020: 2Am²
Technical Specifications
| CR002 | CR003 | CR004 | CR005 | CR006 | CR0010 | CR0012 | CR0020 | |
| Performance | ||||||||
| Max Voltage [V] | 5 | 5 | 5 | 5 | 5 | 5 | 5 | 5 |
| Minimum Magnetic Moment [AM²] @ 5V | 0.20 | 0.30 | 0.40 | 0.63 | 0.80 | 1.00 | 1.20 | 2.00 |
| Magnetic Gain [AM²/A] | 2.3 | 4.3 | 3.3 | 5.8 | 7.0 | 7.8 | 8.6 | 13.2 |
| Linearity [0-5V] | 2.50% | 2.50% | 2.50% | 2.50% | 2.50% | 2.50% | 2.50% | 2.50% |
| Nominal Resistance [Ω] | 51 | 66.5 | 39.5 | 45 | 44.5 | 37.5 | 36.5 | 32.5 |
| Physical | ||||||||
| Mass [g] | 16,5 | 23 | 23 | 31 | 28 | 37 | 45 | 54 |
| Dimensions [WxHxL] [mm] | 10.5x47x10.5 | 10.5x59x10.5 | 10.5x59x10.5 | 10.5x77x10.5 | 10.5x92x10.5 | 10.5x92x10.5 | 13x122x13 | 13x152x13 |
| Power & Data | ||||||||
| Connector | Molex Pico-Look | Molex Pico-Look | Molex Pico-Look | Molex Pico-Look | Molex Pico-Look | Molex Pico-Look | Molex Pico-Look | Molex Pico-Look |
| Qualification Level | ||||||||
| Radiation | N/A | N/A | N/A | N/A | N/A | N/A | N/A | N/A |
| Random Vibration | 14.16 g RMS (NASA GEVS) | 14.16 g RMS (NASA GEVS) | 14.16 g RMS (NASA GEVS) | 14.16 g RMS (NASA GEVS) | 14.16 g RMS (NASA GEVS) | 14.16 g RMS (NASA GEVS) | 14.16 g RMS (NASA GEVS) | 14.16 g RMS (NASA GEVS) |
| Thermal vacuum [°C] | -20 to 80 | -20 to 80 | -20 to 80 | -20 to 80 | -20 to 80 | -20 to 80 | -20 to 80 | -20 to 80 |
| Thermal cold and hot start [°C] | -35 to 70 | -35 to 70 | -35 to 70 | -35 to 70 | -35 to 70 | -35 to 70 | -35 to 70 | -35 to 70 |
