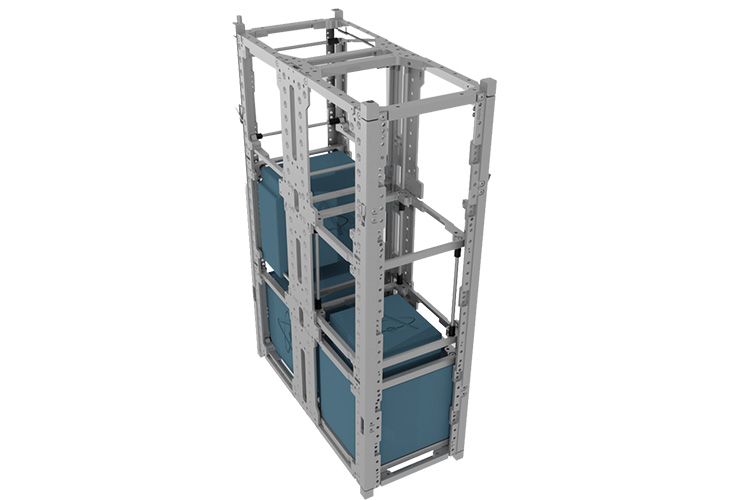

The platforms developed by Alén Space reflect the extensive experience of the team in the manufacture of small satellites under the CubeSat standard. Sizes 1U, 2U, 3U, 6U, 12U and 16U are available, manufactured with high-quality processes and ready to be integrated in record time with the payload of any type of space mission. All buses are designed to accelerate the development time of individual nanosatellite projects or small satellite constellations.

Lead Time: 12 weeks

Platforms 1U-6U

Vendor: Alén Space
Sold By : Alen Space Category:

Description

Platform Size
 1U 2U 3U 6U
Payload capacity Mass (g) 87-330 480-1072 570-1400 6900-7825
Volumen (U) 0.26-0.4 0.7-1.4 1.4-2.2 3.5-4.7
Avg. Power consumption for 100% Payload Duty Cycle (W) 0.80-0.95 0.8-6.2 0.5-5.9 7.8-38.5
Worst Power Available for Payload (W) 3 4-14 5-12 14-44
Power Lines
  • 3V3
  • 5V
  • VBAT
  • 3V3
  • 5V
  • VBAT
    • 3V3
    • 5V
    • 12V
    • 28V
    • VBAT
    • User Defined
  • 3V3
  • 5V
  • 12V
  • 28V
  • VBAT
  • User Defined
Peak Power Consumption (W) 30 180 180 180
Battery capacity (Wh) 20-38.5 38.5 92 92
ADCS ADCS models Detumbling Standard ADCS:

  • Detumbling
  • 3-axis stabilization
  • Nadir pointing
  • Velocity pointing

Upgraded ADCS:

  • Detumbling
  • Y-spin
  • 3-axis stabilization
  • Nadir pointing
  • Velocity pointing
  • Ground pointing (tracking)
  • User-defined



 Standard ADCS:

  • Detumbling
  • 3-axis stabilization
  • Nadir pointing
  • Velocity pointing

Upgraded ADCS:

  • Detumbling
  • Y-spin
  • 3-axis stabilization
  • Nadir pointing
  • Velocity pointing
  • Ground pointing (tracking)
  • User-defined
 Upgraded ADCS:

  • Detumbling
  • Y-spin
  • 3-axis stabilization
  • Sun pointing
  • Nadir pointing
  • Velocity pointing
  • Ground pointing (tracking)
  • User-defined
ADCS measurement accuracy (deg) – Standard ADCS:

  • Low accuracy: 5
  • High accuracy: 0.6

Upgraded ADCS:

  • Low accuracy: 5
  • High accuracy: 0.1
  • Standard ADCS:
    • Low accuracy: 5
    • High accuracy: 0.6

    Upgraded ADCS:

    • Low accuracy: 5
    • High accuracy: 0.1
  • Low accuracy: 5
  • High accuracy: 0.1
ADCS pointing accuracy (deg) – Standard ADCS:

  • Low accuracy: 10
  • High accuracy: 3

Upgraded ADCS:

  • Low accuracy: 6
  • High accuracy: 0.2
  • Standard ADCS:
    • Low accuracy: 10
    • High accuracy: 3

    Upgraded ADCS:

    • Low accuracy: 6
    • High accuracy: 0.2
  • Low accuracy: 6
  • High accuracy: 0.2
OBC Interfaces
  • RS422
  • UART
  • CAN
  • I2C
  • PPS
  • GPIO
  • ADC
  • PWM
  • SPI
  • RS422
  • UART
  • CAN
  • I2C
  • PPS
  • GPIO
  • ADC
  • PWM
  • SPI
  • RS422
  • UART
  • CAN
  • I2C
  • PPS
  • GPIO
  • ADC
  • PWM
  • SPI
    • RS422
    • UART
    • CAN
    • I2C
    • PPS
    • GPIO
    • ADC
    • PWM
    • SPI
OS Alén Space OBSW Alén Space OBSW Alén Space OBSW Alén Space OBSW
On-board storage (GB) up to 64 up to 64 up to 64 up to 64
Security AES256 AES256 AES256 AES256
Communications TTC bands VHF, UHF VHF, UHF, S-Band VHF, UHF, S-Band VHF, UHF, S-Band
TTC downlink datarate (kbps) 0.5-19.2 0.5-512 0.5-512 0.5-512
TTC uplink datarate (kbps) 0.5-19.2 0.5-256 0.5-256 0.5-256
Data Bands – S-Band Optional S-Band Optional

X-Band Optional

 S-Band Optional

X-Band Optional
Data Bands – 2 2-50 2-50
Data Bands – 2 2 2
Propulsion Info No No Propulsion Optional Propulsion Optional
Platform Design Lifetime (years) 3-5 3-5 3-5 3-5

*If your project has specific needs, contact our team. We can adapt the small satellite buses to your requirements, with adjustments and custom developments.
